Telecentric Lens
MML2-HR110DVI-43M58-B
▪ ラージイメージフォーマット（対角28、35、43mm）対応
▪ 高分解能デザイン、3.5um/pixelのカメラ素子対応
Download DataUser Manual
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection
Model Description
Specifications
|
Model |
MML2-HR110DVI-43M58-B |
|
Magnification (x) |
2 |
|
O/I [mm] |
386.1 |
|
WD (mm) |
109.7 |
|
Resolution (μm) |
2.7~7.4 |
|
Depth of Field (mm) |
0.16~0.44 |
|
NA |
0.125~0.045 |
|
Effective Fno |
8~22 |
|
IF (mm) |
43.5 |
|
TV Distortion (%) |
≤-0.028 |
*1 Resolution values indicate the theoretical resolution at a wavelength of 550nm;
*2 Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

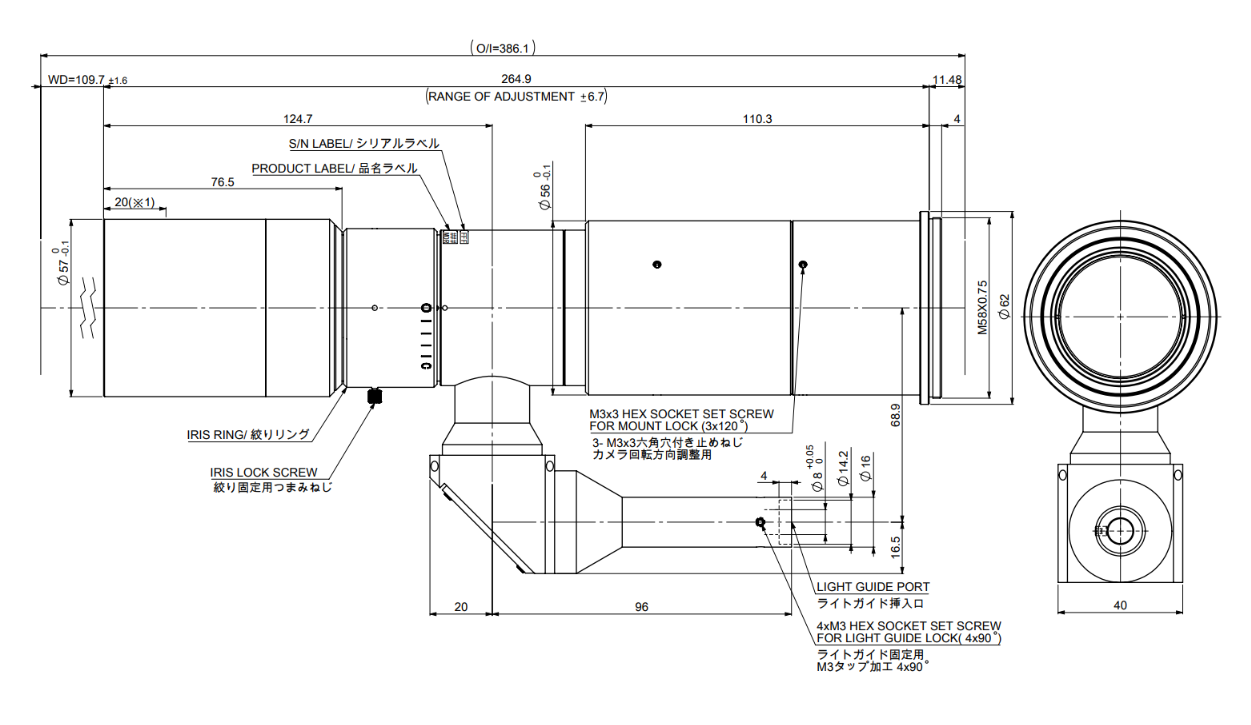

External View
